AS ONE Corporation

• Material: Pedestal/soft rubber, Cover/Silicone (thickness 1mm)
• Outer dimension (mm): f130 x 58
• Pedestal size 130 x 48mm
• Specific gravity: 3.90
• Chemical composition: Al2O3 99.96%
• Vickers hardness Hv: >1450
• Processing volume: 130g
• Specular finish
• Set content: Mortar, Cover, Pedestal
• Model number: KAS-13
• The grinding surface has a glossy mirror finish.
• The alumina purity of 99.7% or more offers Vickers hardness(HV) of 1,450 or more, prevents contamination by previous use, and facilitates cleaning.
• High hardness assures efficient grinding.
• The soft rubber base provided at the mortar bottom assures stability, and enables easy grinding with only one hand.
• The cover keeps out foreign substances.

• Model number: ULS-1N
• Type: 1 tandem digital display
• Size (mm): 250x250x89
• Rotation speed: 5 - 100rpm
• Stirred capacity: 5L
• Rotation speed accuracy: ?1rpm (in all rotation ranges)
• Motor: DC brushless motor
• Magnet: Neodium magnet
• Material: top board, body exterior/stainless steel (SUS304)
• Power supply: 100VAC 50/60Hz
• *Demonstration equipment is available.
• Smooth and stable rotation is possible even at ultra low speed.
• Suitable for use in incubator thanks to low heat generation design.
• Sealed structure that is free from condensation worries.
• Rotation speed errors are very small, and the feedback mechanism makes rotation speed stable even while viscosity changes.
• Exterier is stainless steel that gives high chemical resistance, and its structure makes it difficult for liquid to enter body.
• 4-positions type is rotated by one motor to eliminate variability of rotation speed among positions.

• Model number: ULS-4N
• Type: 4 tandem digital display
• Size (mm): 350x350x89
• Rotation speed: 5 - 100rpm
• Stirred capacity: 2L
• Rotation speed accuracy: ?1rpm (in all rotation ranges)
• Motor: DC brushless motor
• Magnet: Neodium magnet
• Material: top board, body exterior/stainless steel (SUS304)
• Power supply: 100VAC 50/60Hz
• Smooth and stable rotation is possible even at ultra low speed.
• Suitable for use in incubator thanks to low heat generation design.
• Sealed structure that is free from condensation worries.
• Rotation speed errors are very small, and the feedback mechanism makes rotation speed stable even while viscosity changes.
• Exterier is stainless steel that gives high chemical resistance, and its structure makes it difficult for liquid to enter body.
• 4-positions type is rotated by one motor to eliminate variability of rotation speed among positions.

• Model number: GPU-1
• Pump material: Wetted part/PPS (polyphenylene sulfide), Seal section/NBR (nitrile rubber), Axis/stainless steel (SUS304)
• Exterior material: Stainless steel (SUS304)
• Hose connection section: Outer diameter f6.4 x 19mm
• Built-in motor overcurrent prevention function
• Power supply: AC100V 50/60Hz (2P plug)
• Weight: 700g
• Discharge flow rate: 90 - 350mL/min
• Size: 100 x 144 x 96mm
• It product adopts chemical resistant engineering plastic.
• Built-in electronically-controlled rotation circuit enables stable liquid transfer.
• This product has self-suction ability, and enables liquid transfer without pulsation.

• Model number: GPU-2
• Pump material: Wetted part/PPS (polyphenylene sulfide), Seal section/NBR (nitrile rubber), Axis/stainless steel (SUS304)
• Exterior material: Stainless steel (SUS304)
• Hose connection section: Outer diameter f6.4 x 19mm
• Built-in motor overcurrent prevention function
• Power supply: AC100V 50/60Hz (2P plug)
• Weight: 700g
• Discharge flow rate: 150 - 600mL/min
• Size: 100 x 144 x 96mm
• It product adopts chemical resistant engineering plastic.
• Built-in electronically-controlled rotation circuit enables stable liquid transfer.
• This product has self-suction ability, and enables liquid transfer without pulsation.

• Model number: GPU-3
• Pump material: Wetted part/PPS (polyphenylene sulfide), Seal section/NBR (nitrile rubber), Axis/stainless steel (SUS304)
• Exterior material: Stainless steel (SUS304)
• Hose connection section: Outer diameter f6.4 x 19mm
• Built-in motor overcurrent prevention function
• Power supply: AC100V 50/60Hz (2P plug)
• Weight: 880g
• Discharge flow rate: 300 - 1300mL/min
• Size: 100 x 147 x 106mm
• It product adopts chemical resistant engineering plastic.
• Built-in electronically-controlled rotation circuit enables stable liquid transfer.
• This product has self-suction ability, and enables liquid transfer without pulsation.

• Model number: HC300-01
• Weighted (t): 0 - 1
• Size (mm): 495 x 430 x 500
• Weight (kg): Approx 63
• Hot plate size: 200 x 150mm
• Hot plate stroke: 0 - 90mm
• Heating temperature: Highest temperature 300?
• Heater capacity: 660W/heating plate x 2 sheets
• Temperature adjustment: PID type
• With pressure gauge left needle, analog display
• Power supply: 100VAC 50/60Hz
• Power cord length: 2.5m (with 3P plug)
• *This product is water cooling type, but the machine itself cannot cool down . Please use by circulating tap water or cooling water.
• *it cannot hold pressure for long hours.
• *Pressure is recommended for use in 50% or more of the largest value.
• Equipped with cooling functions, this hot press is convenient for molding operations.
• Capable of cooling samples and dies through the circulation of cooling water or tap water after heating and molding operations.
• The temperature of the upper and lower hot plates can be separately adjusted.
• Capable of manufacturing plastic sheets and molding samples.
• Suitable for heating compression molding tests of various materials.
• Driven by hydraulic pressure, it ensures easy weight application.
• The peak hold pressure gauge with two pointers allows you to check the applied pressure.

• Model number: HC300-05
• Weighted (t): 0 - 5
• Size (mm): 470 x 460 x 530
• Weight (kg): 65
• Hot plate size: 200 x 150mm
• Hot plate stroke: 0 - 90mm
• Heating temperature: Highest temperature 300?
• Heater capacity: 660W/heating plate x 2 sheets
• Temperature adjustment: PID type
• With pressure gauge left needle, analog display
• Power supply: 100VAC 50/60Hz
• Power cord length: 2.5m (with 3P plug)
• *This product is water cooling type, but the machine itself cannot cool down . Please use by circulating tap water or cooling water.
• *it cannot hold pressure for long hours.
• *Pressure is recommended for use in 50% or more of the largest value.
• Equipped with cooling functions, this hot press is convenient for molding operations.
• Capable of cooling samples and dies through the circulation of cooling water or tap water after heating and molding operations.
• The temperature of the upper and lower hot plates can be separately adjusted.
• Capable of manufacturing plastic sheets and molding samples.
• Suitable for heating compression molding tests of various materials.
• Driven by hydraulic pressure, it ensures easy weight application.
• The peak hold pressure gauge with two pointers allows you to check the applied pressure.

• Model number: HC300-15
• Weighted (t): 1 - 15
• Size (mm): 475 x 460 x 615
• Weight (kg): Approx 80
• Hot plate size: 200 x 150mm
• Hot plate stroke: 0 - 90mm
• Heating temperature: Highest temperature 300?
• Heater capacity: 660W/heating plate x 2 sheets
• Temperature adjustment: PID type
• With pressure gauge left needle, analog display
• Power supply: 100VAC 50/60Hz
• Power cord length: 2.5m (with 3P plug)
• *This product is water cooling type, but the machine itself cannot cool down . Please use by circulating tap water or cooling water.
• *it cannot hold pressure for long hours.
• *Pressure is recommended for use in 50% or more of the largest value.
• Equipped with cooling functions, this hot press is convenient for molding operations.
• Capable of cooling samples and dies through the circulation of cooling water or tap water after heating and molding operations.
• The temperature of the upper and lower hot plates can be separately adjusted.
• Capable of manufacturing plastic sheets and molding samples.
• Suitable for heating compression molding tests of various materials.
• Driven by hydraulic pressure, it ensures easy weight application.
• The peak hold pressure gauge with two pointers allows you to check the applied pressure.

• Top diameter x bottom diameter x total height (mm): f16 x f24 x 110
• True specific gravity: 3.9
• Chemical composition: Al2O3/99.9% or more
• Vickers hardness: Hv • 1450
• Specular finish
• Model number: SKAB-11
• It has hardness second only to diamond, to prevent contamination.

• Top diameter x bottom diameter x total height (mm): f18 x f26 x 130
• True specific gravity: 3.9
• Chemical composition: Al2O3/99.9% or more
• Vickers hardness: Hv • 1450
• Specular finish
• Model number: SKAB-12
• It has hardness second only to diamond, to prevent contamination.

• Top diameter x bottom diameter x total height (mm): f22 x f30 x 150
• True specific gravity: 3.9
• Chemical composition: Al2O3/99.9% or more
• Vickers hardness: Hv • 1450
• Specular finish
• Model number: SKAB-13
• It has hardness second only to diamond, to prevent contamination.

• Material: Body, tray/stainless steel (SUS304), Key/zinc alloy (chromium plating), Key/yellow copper plate (nickel plating)
• Weight: STR-O/about 12.5kg, KD/about 15.2kg (including 4 trays)
• Number of tray: 4 shelves
• Tray size: Outer dimensions/274 x 359 x 60mm, Bottom internal dimensions/216 x 301mm
• Tray withstand load: Approx 9kg
• Accessories: Tray (1-2393-06) x 4 sheets
• Open type
• Size (mm): 313 x 370 x 433
• *Present (1-2393-06) for replacement tray.
• Model number: STR-O
• large capacity tray has enough depth to accommodate A4 clear folders.
• tray is removable and easy to carry to where it is to be used.
• tray is provided with longer edge convenient for holding with hand, and also is flat type that prevents debris from accumulating

• Material: Body, tray/stainless steel (SUS304), Key/zinc alloy (chromium plating), Key/yellow copper plate (nickel plating)
• Weight: STR-O/about 12.5kg, KD/about 15.2kg (including 4 trays)
• Number of tray: 4 shelves
• Tray size: Outer dimensions/274 x 359 x 60mm, Bottom internal dimensions/216 x 301mm
• Tray withstand load: Approx 9kg
• Accessories: Tray (1-2393-06) x 4 sheets
• Door with key type
• Size (mm): 363 x 394 x 433
• *Present (1-2393-06) for replacement tray.

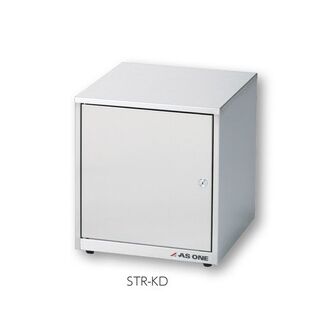

• Model number: STR-KD
• large capacity tray has enough depth to accommodate A4 clear folders.
• tray is removable and easy to carry to where it is to be used.
• tray is provided with longer edge convenient for holding with hand, and also is flat type that prevents debris from accumulating

• Material: Stainless steel (SUS304)
• Stainless steel pestle
• Quantity: 1 piece
• Model number: ASPES-ST
• The rotation per minute is variable and controllable in a range from 3,000rpm~8,000rpm.
• It is suitable to even high load sample.
• The rotation per minute is stable because of the high torque.

• Specification: Plastic (POM) pesle
• Quantity : 1 bag (50 pieces)

• material: stainless steel (SUS410)
• Size: 60 x 20 mm
• Total length: 205 mm
• Convenient for scooping large quantity at one time from a narrow mouth container.

• material: stainless steel (SUS304)
• Size: 60 x 20 mm
• Total length: 230 mm
• Convenient for scooping large quantity at one time from a narrow mouth container.

• Material: PS (polystyrene)
• Size: 87 x 28 x 42mm
• Weight: 65g
• Model number: F37786-1000
• Easily take rotors out of beaker with one hand.

• Material: ABS resin
• Accessories: Accessory holder x 1 piece, substitute edge x 2 pieces
• Size: 171 x 120 x 156mm
• Model number: HS234525B
• Possible to set in 4-inch PARAFILM*R* roll.
