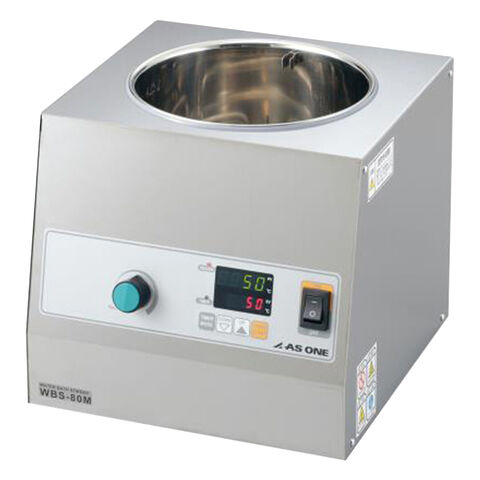

Water Bath Stirrer

<br> &bull; tank inner size (mm): 180 x 180<br> &bull; material: Main body / stainless steel (SUS430), tank / stainless (SUS316)<br> &bull; temperature settings range: R.T. + 5 to 80 ? C<br> &bull; Temperature display accuracy: ? 2 ? C<br> &bull; Heater capacity: Sez heater 750 W<br> &bull; Temperature sensor: K class thermocouple<br> &bull; Temperature control system: microcomputer PID control<br> &bull; rotation speed: 100 to 1200 rpm<br> &bull; Safety device: Temperature overrise prevention device and overcurrent prevention fuse<br> &bull; Timer setting range: 0 to 99 hours 59 minutes<br> &bull; Mountable thermometer size: f7 to 10 mm<br> &bull; power supply: AC100V 50 / 60Hz 800 W<br> &bull; Nagayoshi power cord: 2.5 m (With 3P Plug 2PP2-3 P Conversion Adapter)<br> &bull; Accessories: agitator (f8 x 30 mm) ? 1 piece<br> &bull; external dimension (mm): 260 x 266 (290) x 241 * () inside Including protrusion<br> &bull; * Do not use duckboard when mixing the sample directly. Use a container below 100 mm<br> &bull; The demo machine is equipped with 3-1496-01<br> &bull; Model Number: WBS-80 M <br> &bull; Possible to regulate temperature accurately and stably by means of PID control. <br> &bull; With integrated stirrer, possible to also heat sample or heat medium while stirring it. <br> &bull; Operation switches are panel waterproof types(conforming to IP67).

AS ONE Corporation
Cheapest shipping from $0
SKU: 2-7940-31
MPN: 2-7940-31
GTIN: NULL
Stock Status: 1,000 pcs
Delivery Status: 1-3 days
$0
pcs

Description


• tank inner size (mm): 180 x 180
• material: Main body / stainless steel (SUS430), tank / stainless (SUS316)
• temperature settings range: R.T. + 5 to 80 ? C
• Temperature display accuracy: ? 2 ? C
• Heater capacity: Sez heater 750 W
• Temperature sensor: K class thermocouple
• Temperature control system: microcomputer PID control
• rotation speed: 100 to 1200 rpm
• Safety device: Temperature overrise prevention device and overcurrent prevention fuse
• Timer setting range: 0 to 99 hours 59 minutes
• Mountable thermometer size: f7 to 10 mm
• power supply: AC100V 50 / 60Hz 800 W
• Nagayoshi power cord: 2.5 m (With 3P Plug 2PP2-3 P Conversion Adapter)
• Accessories: agitator (f8 x 30 mm) ? 1 piece
• external dimension (mm): 260 x 266 (290) x 241 * () inside Including protrusion
• * Do not use duckboard when mixing the sample directly. Use a container below 100 mm
• The demo machine is equipped with 3-1496-01
• Model Number: WBS-80 M
• Possible to regulate temperature accurately and stably by means of PID control.
• With integrated stirrer, possible to also heat sample or heat medium while stirring it.
• Operation switches are panel waterproof types(conforming to IP67).
