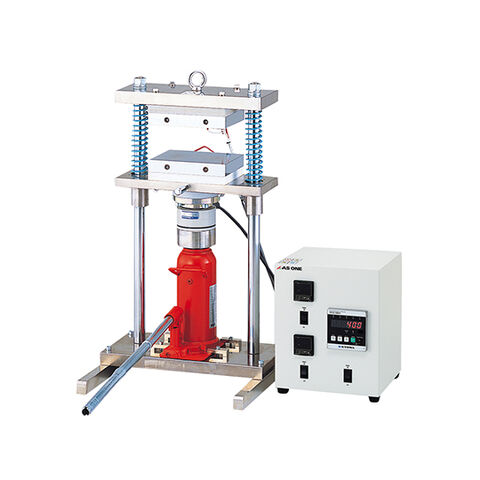

Small Heat Press Machine 0 - 10T
<br> • Model number: H300-10D<br> • Weighted (t): 0 - 10<br> • Size (mm): 640 x 410 (815) x 715<br> • Weight (kg): Approx 90<br> • Hot plate size: 200 x 150mm<br> • Hot plate stroke: 0 - 90mm<br> • Heating temperature: R.T. +20 - 300?<br> • Heater capacity: 660W/heating plate x 2 sheets<br> • Temperature adjustment: PID type<br> • Pressure gauge: Load cell measuring, digital display<br> • Power supply: 100VAC 50/60Hz<br> • Power cord length: 2.5m (with 3P plug)<br> • Application: To fabricate a compression forming type test and samples of resin and various powder. <br> • Capable of manufacturing plastic sheets and molding samples. <br> • Suitable for heating compression molding tests of various materials. <br> • Driven by hydraulic pressure, it ensures easy weight application. <br> • Peak hold pressure gauge with 2-pointers allows you to check applied pressure. <br> • Equipped with load cell for measuring of applied weight, it digitally displays the weighted value(H300-10D).
Description
• Model number: H300-10D
• Weighted (t): 0 - 10
• Size (mm): 640 x 410 (815) x 715
• Weight (kg): Approx 90
• Hot plate size: 200 x 150mm
• Hot plate stroke: 0 - 90mm
• Heating temperature: R.T. +20 - 300?
• Heater capacity: 660W/heating plate x 2 sheets
• Temperature adjustment: PID type
• Pressure gauge: Load cell measuring, digital display
• Power supply: 100VAC 50/60Hz
• Power cord length: 2.5m (with 3P plug)
• Application: To fabricate a compression forming type test and samples of resin and various powder.
• Capable of manufacturing plastic sheets and molding samples.
• Suitable for heating compression molding tests of various materials.
• Driven by hydraulic pressure, it ensures easy weight application.
• Peak hold pressure gauge with 2-pointers allows you to check applied pressure.
• Equipped with load cell for measuring of applied weight, it digitally displays the weighted value(H300-10D).
