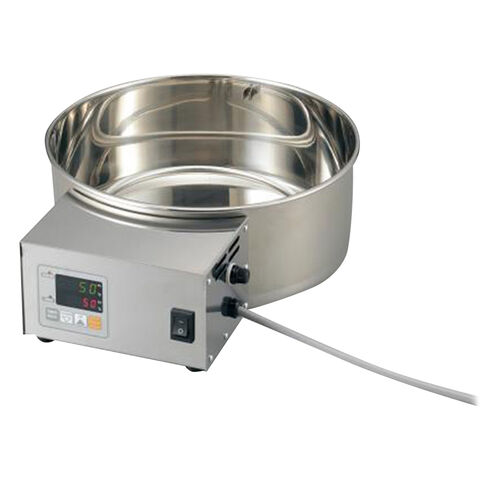

Large Water Bath

<br> • Water tank: Material/stainless steel (SUS316), Capacity/7L<br> • Body material: Stainless steel (SUS304)<br> • Temperature controller: PID control<br> • Temperature settings range: Room temperature +5 - 80?<br> • Temperature controller timer: 0 - 99 hours 59 minutes (with equipment stop function)<br> • Temperature control system: Microcomputer PID control<br> • Temperature sensor: K class thermocouple<br> • Temperature display precision: +/- 2?<br> • Heater capacity: Sheathed heater 1000W<br> • Safety device: Temperature excessive rise prevention device, overcurrent prevention fuse<br> • Power supply: 100VAC 50/60Hz<br> • Power cord: 2.5m 3P plug (with 2P conversion adapter)<br> • Weight: 2.4kg<br> • Outer dimension (mm): 314 x 395 x 120<br> • Chamber dimensions (mm): f300 x 120<br> • *Demonstration equipment 3-1496-01 is available.<br> • Model number: BWB-300 <br> • Possible to regulate temperature accurately and stably by means of PID control. <br> • With large width, it is suitable to use for evaporator. <br> • Because control unit is located on lateral side, stirrer and stirring drain board can be used in combination.

AS ONE Corporation

Cheapest shipping from $0

SKU: 3-1480-01

MPN: 3-1480-01

GTIN: NULL

Stock Status: 1,000 pcs

Delivery Status: 1-3 days

Description

• Water tank: Material/stainless steel (SUS316), Capacity/7L
• Body material: Stainless steel (SUS304)
• Temperature controller: PID control
• Temperature settings range: Room temperature +5 - 80?
• Temperature controller timer: 0 - 99 hours 59 minutes (with equipment stop function)
• Temperature control system: Microcomputer PID control
• Temperature sensor: K class thermocouple
• Temperature display precision: +/- 2?
• Heater capacity: Sheathed heater 1000W
• Safety device: Temperature excessive rise prevention device, overcurrent prevention fuse
• Power supply: 100VAC 50/60Hz
• Power cord: 2.5m 3P plug (with 2P conversion adapter)
• Weight: 2.4kg
• Outer dimension (mm): 314 x 395 x 120
• Chamber dimensions (mm): f300 x 120
• *Demonstration equipment 3-1496-01 is available.
• Model number: BWB-300
• Possible to regulate temperature accurately and stably by means of PID control.
• With large width, it is suitable to use for evaporator.
• Because control unit is located on lateral side, stirrer and stirring drain board can be used in combination.
