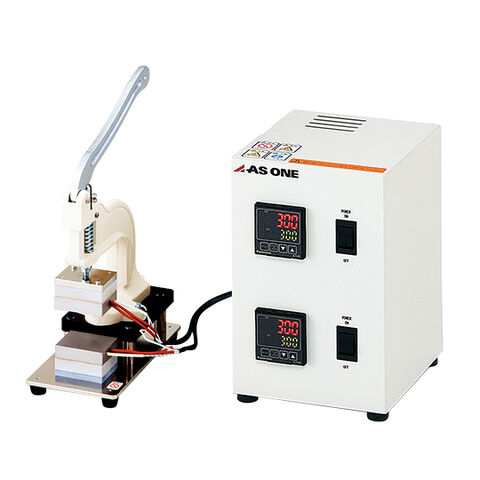

Hand Hot Press Digital

<br> • Model number: HHP2-2D<br> • Size (mm): 150 x 280 x 465<br> • Weight (kg): About 14<br> • Up or down thermal plates Distance: 38 - 63mm (stroke: 25mm)<br> • Weighted: Maximum approx 40kg<br> • Heating temperature: R.T. +20 - 300?<br> • Temperature settings: Digital<br> • Sensor: K class thermocouple<br> • Material: Press Body/cast Iron baking coating, Lever/cast iron (Chromium Plating), Temperature control/steel coating, Base/Phenol Resin, Top board/aluminum<br> • Heater: 160W x 2<br> • Power supply: 100VAC 50/60Hz<br> • Power cord length: 2.5m<br> • *Hot plate of up or down does not contact with each other.<br> • *Use with the optional gold type. <br> • Suitable for hot pressing of samples in a size as small as a tablet. <br> • This press can be used with a die(f7~14*mm*?sold separately). <br> • <HHP2-2D> <br> • The upper and lower hot plates separately heat samples.

AS ONE Corporation

Cheapest shipping from $0

SKU: 1-312-17

MPN: 1-312-17

GTIN: NULL

Stock Status: 1,000 pcs

Delivery Status: 1-3 days

Description

• Model number: HHP2-2D
• Size (mm): 150 x 280 x 465
• Weight (kg): About 14
• Up or down thermal plates Distance: 38 - 63mm (stroke: 25mm)
• Weighted: Maximum approx 40kg
• Heating temperature: R.T. +20 - 300?
• Temperature settings: Digital
• Sensor: K class thermocouple
• Material: Press Body/cast Iron baking coating, Lever/cast iron (Chromium Plating), Temperature control/steel coating, Base/Phenol Resin, Top board/aluminum
• Heater: 160W x 2
• Power supply: 100VAC 50/60Hz
• Power cord length: 2.5m
• *Hot plate of up or down does not contact with each other.
• *Use with the optional gold type.
• Suitable for hot pressing of samples in a size as small as a tablet.
• This press can be used with a die(f7~14*mm*?sold separately).
•
• The upper and lower hot plates separately heat samples.
