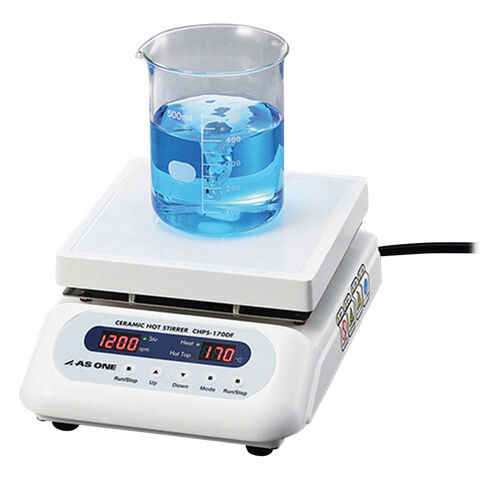

Ceramic Hot Stirrer (Digital Type) 550? 175 x 178mm


• Model number: CHPS-170DF
• Highest temperature (?): 550
• Plate size (mm): 170 x 170
• Rotation speed: 100 - 1200rpm
• Motor: DC brush motor
• Temperature control system: PID control
• Sensor: K class thermocouple
• Temperature, rotation speed control: Digital setting (10?/10rpm unit)
• Material: Plate/ceramic, Body/aluminum die cast heat-resistant coating
• Heater capacity: 900W
• Safety device: Over current fuse, high temperature warning display function
• Power supply: 100VAC 50/60Hz
• Power cord length: Approx 1.5m
• Main unit size: 194 x 292 x 104mm
• Weight: Approx 3kg
• *Stirrer bar is not included in the package.
• *Demonstration equipment is available.
• Features high heat/chemical resistance with ceramic glass plate.
• Possible to used at up to 550? for high temperature heating application.
• Plate temperature control is improved with PID temperature control by new algorithm.
• High temperature alert display is equipped to prevent you from touching it at high temperature accidentally.
• Slow start rotation function prevents liquid from scattering.

Cheapest shipping from $0
SKU: 2-8081-41
MPN: 2-8081-41
GTIN: NULL
Stock Status: 1,000 pcs
Delivery Status: 1-3 days
$0
pcs

Description


• Model number: CHPS-170DF
• Highest temperature (?): 550
• Plate size (mm): 170 x 170
• Rotation speed: 100 - 1200rpm
• Motor: DC brush motor
• Temperature control system: PID control
• Sensor: K class thermocouple
• Temperature, rotation speed control: Digital setting (10?/10rpm unit)
• Material: Plate/ceramic, Body/aluminum die cast heat-resistant coating
• Heater capacity: 900W
• Safety device: Over current fuse, high temperature warning display function
• Power supply: 100VAC 50/60Hz
• Power cord length: Approx 1.5m
• Main unit size: 194 x 292 x 104mm
• Weight: Approx 3kg
• *Stirrer bar is not included in the package.
• *Demonstration equipment is available.
• Features high heat/chemical resistance with ceramic glass plate.
• Possible to used at up to 550? for high temperature heating application.
• Plate temperature control is improved with PID temperature control by new algorithm.
• High temperature alert display is equipped to prevent you from touching it at high temperature accidentally.
• Slow start rotation function prevents liquid from scattering.
